More More More

When we first installed our whole house intercom / stereo in 2010 we only put in 5 remote stations https://madisonsquarehome.com/2010/09/25/main-terminal/. Since then every time we did a new project we would say “Do you know what would go great in here? An intercom station!.” This has resulted in us fishing more wire through walls that already were closed up… fun!

We are currently working on the basement, so if there are any more wires to be pulled I want to do it now before we finish painting and put everything back. And after this project we are done with putting in new stations.

The only intercom station in the basement is on the laundry side, so it would be nice to have one in the shop.
IMG_3774

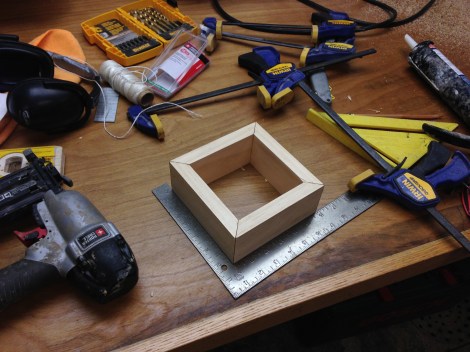

We built this nice box, using the almost – complete shop of course, to mount the speaker to one of the beams.
IMG_3776

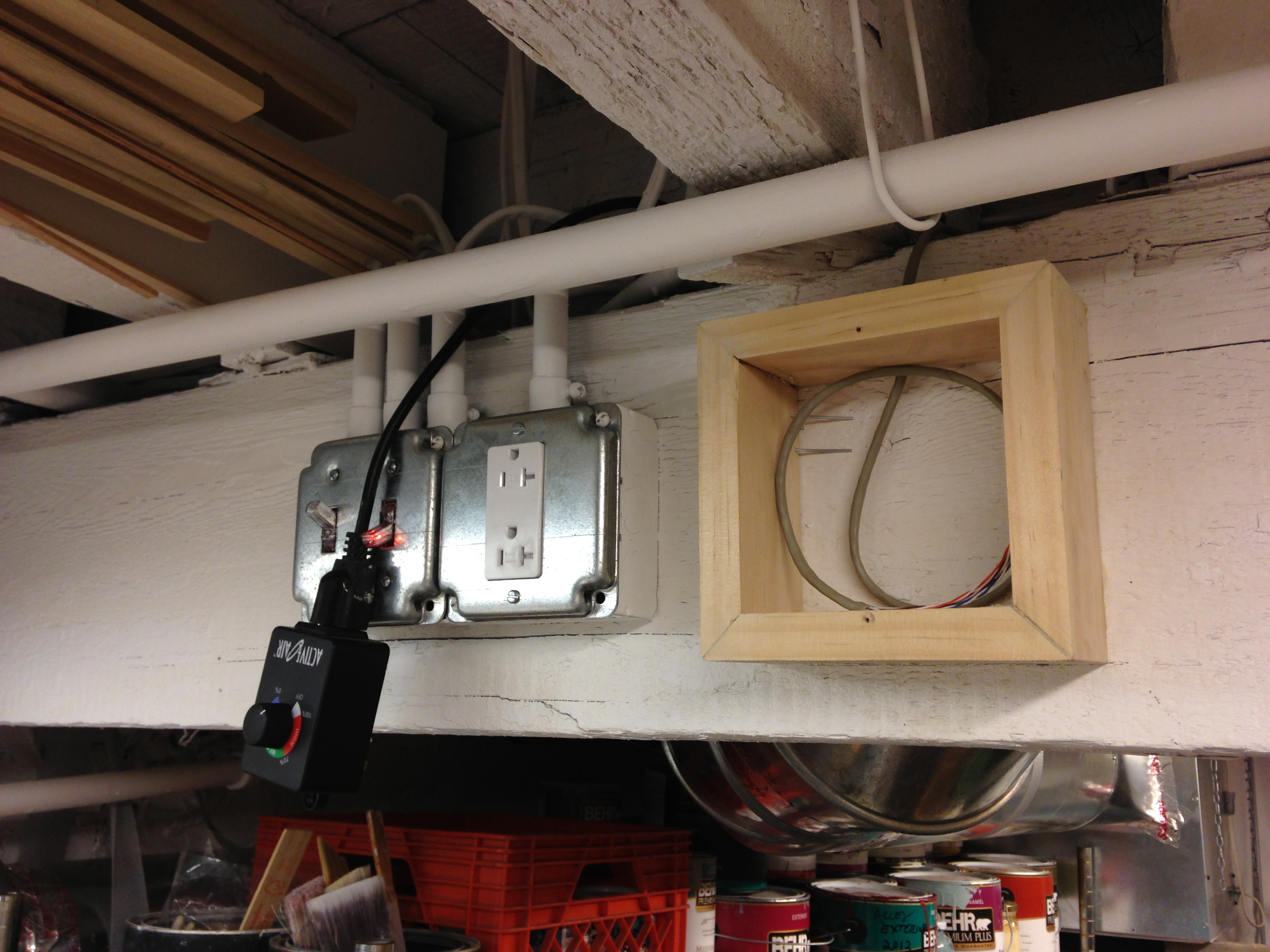

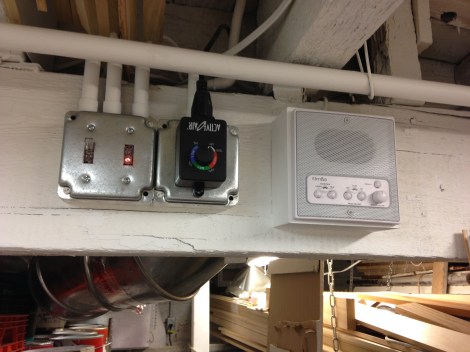

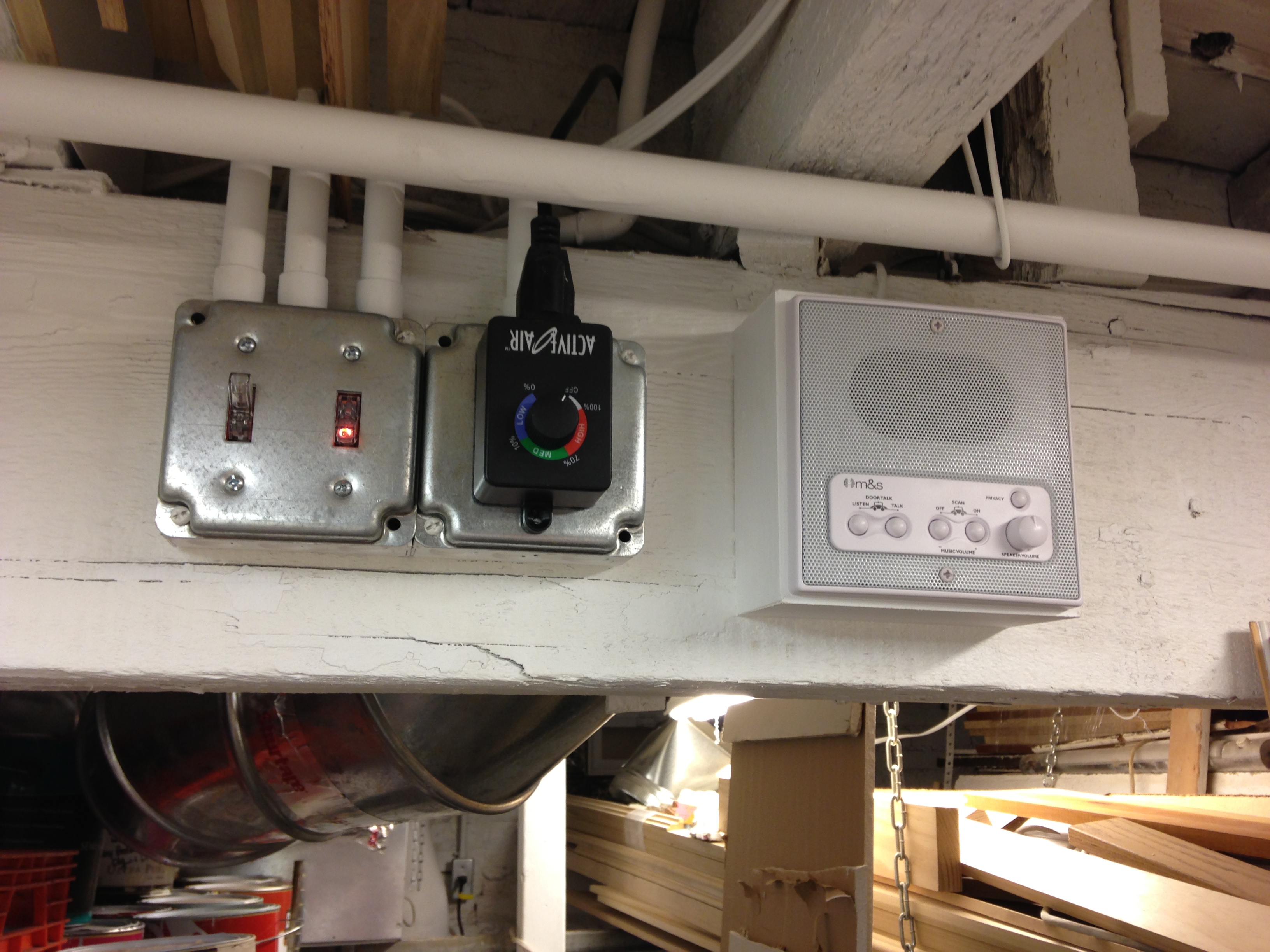

Its conveniently located right next to the switches for the workbench, dust collector, and exhaust switches. (More posts on the shop to come).
IMG_3998

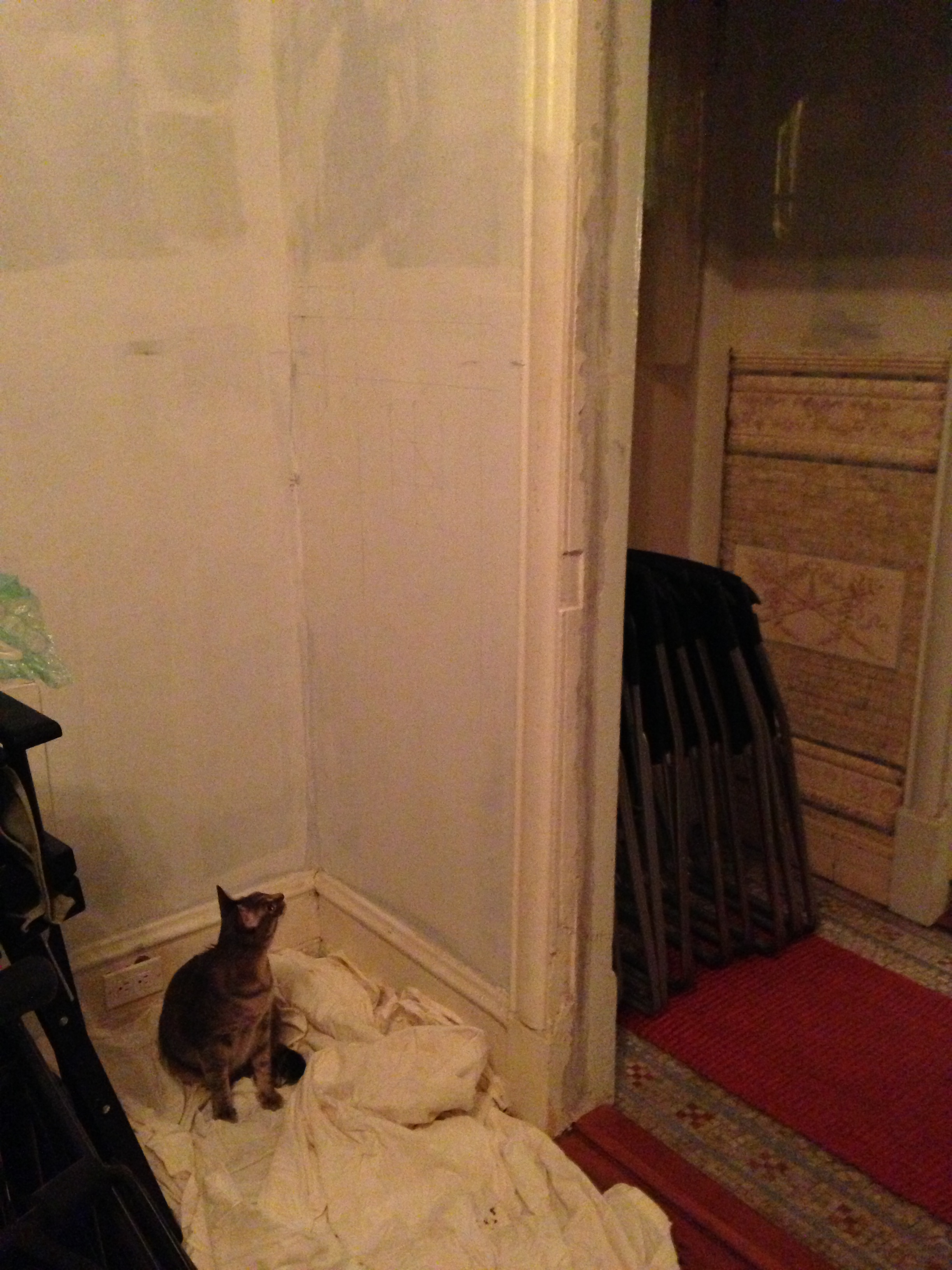

Next up the Dining Room, right above the shop. Maddy helped me pick the location.
IMG_3763

Its always fun to carefully cut into the old plaster walls so it doesn’t all fall apart and then try to fish your wire through the wall.
IMG_3765

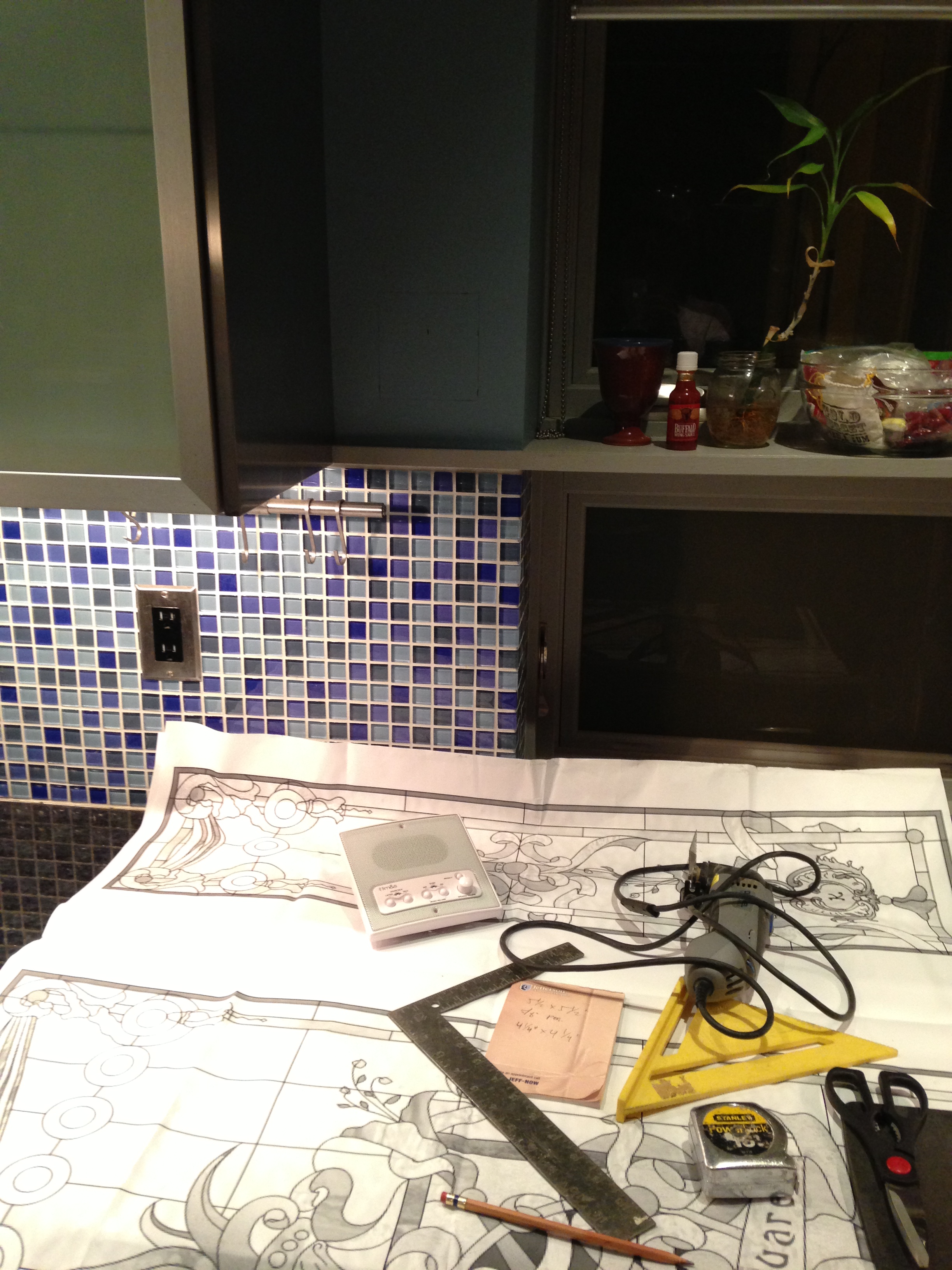

Lastly, we wanted to add one in the Kitchen, though Kelly was not happy about me cutting a hole and making a mess over the counter!
IMG_3777

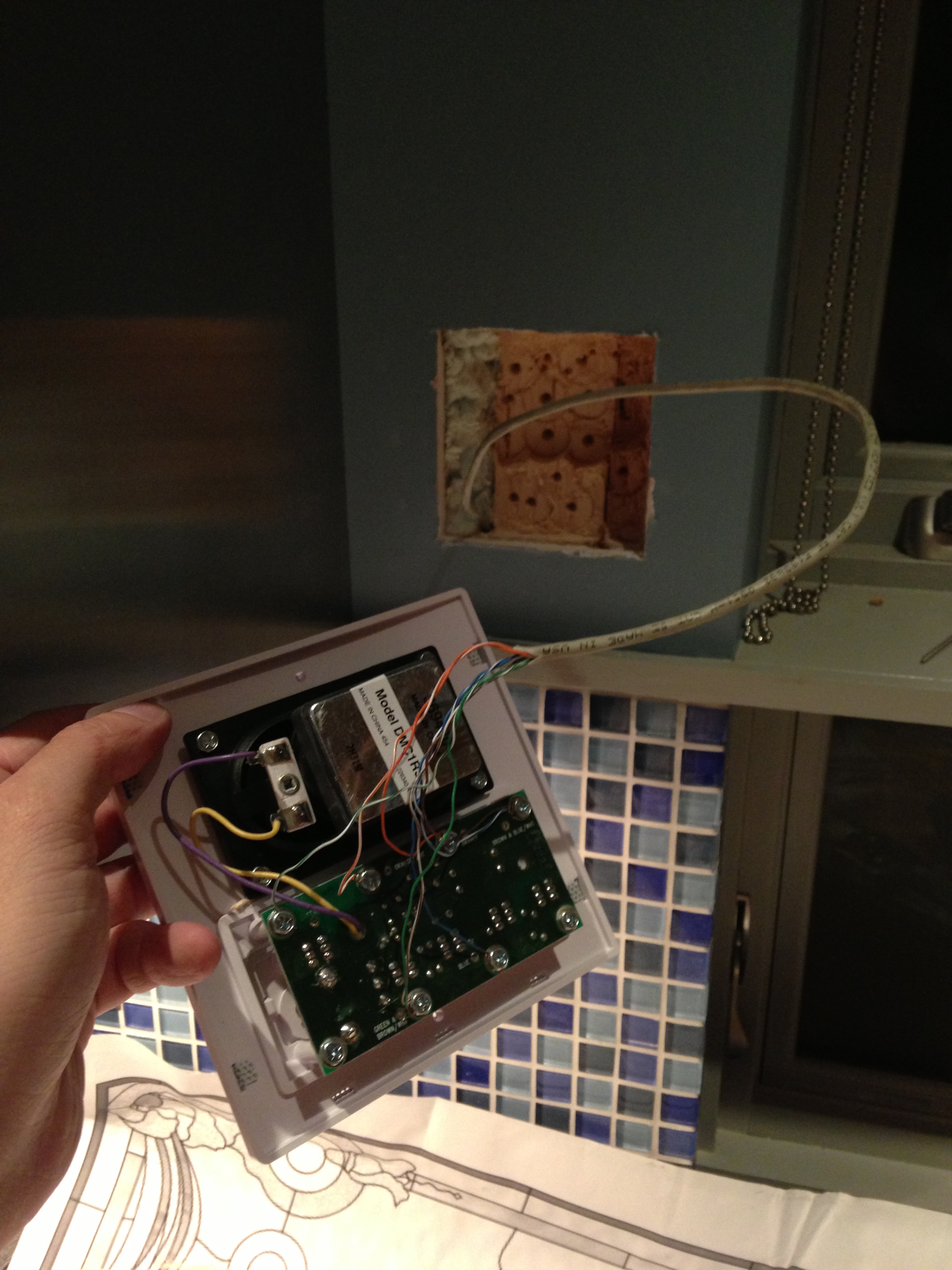

But it wasn’t a big mess and since we built this wall I know exactly what was inside, making it a lot easier to fish the wire through.
IMG_3781

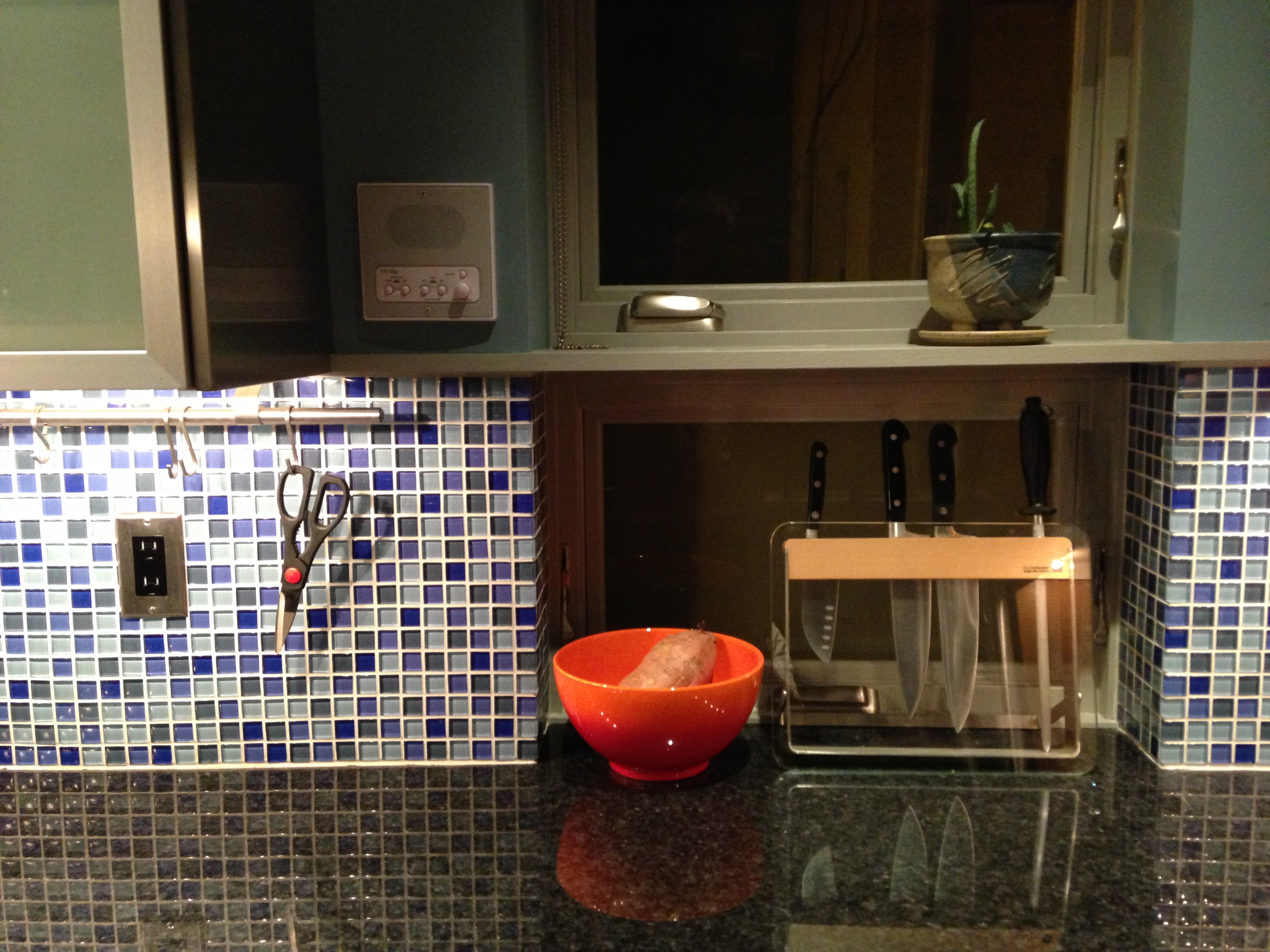

This intercom is going to be super helpful when we grill on the deck and need to call down to the Kitchen!
IMG_3785

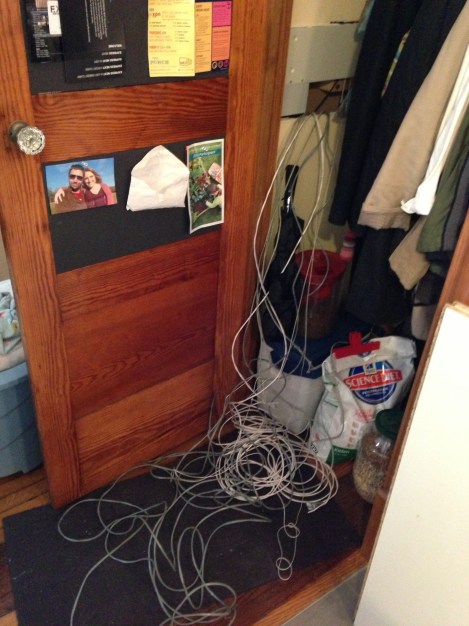

So all these wires had to go back to the main station and have been making a mess of our coat closet.
IMG_3920

Some of the wires have been there for a while, such as from the orange bedroom project in 2011. just waiting for us to get around to opening the main terminal back up to make the connections.

IMG_4001

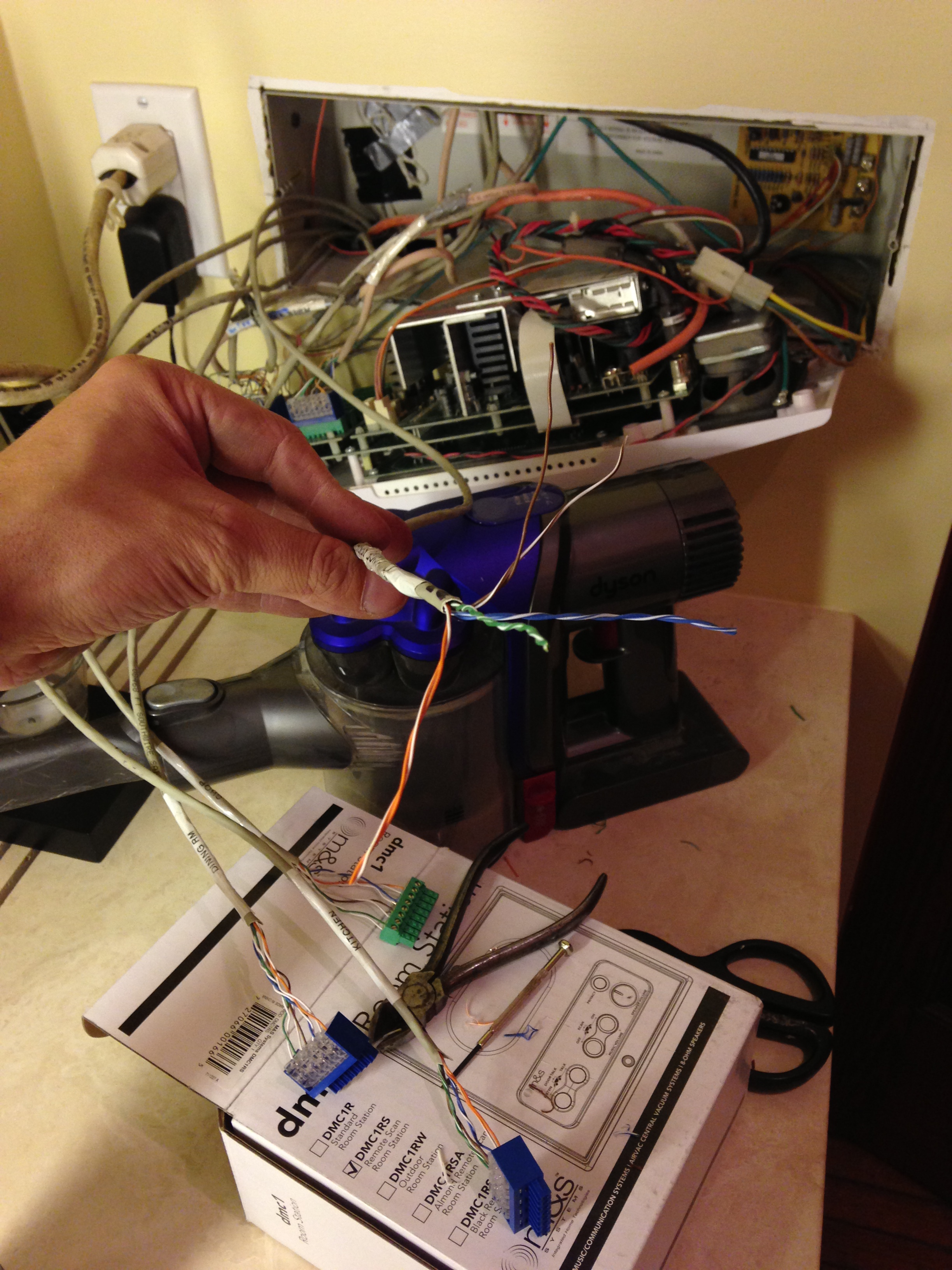

After just a few more connections we were all set up. The CAT5e wire gets wired into these connectors that snap right into the board on the back of the terminal.

IMG_4002

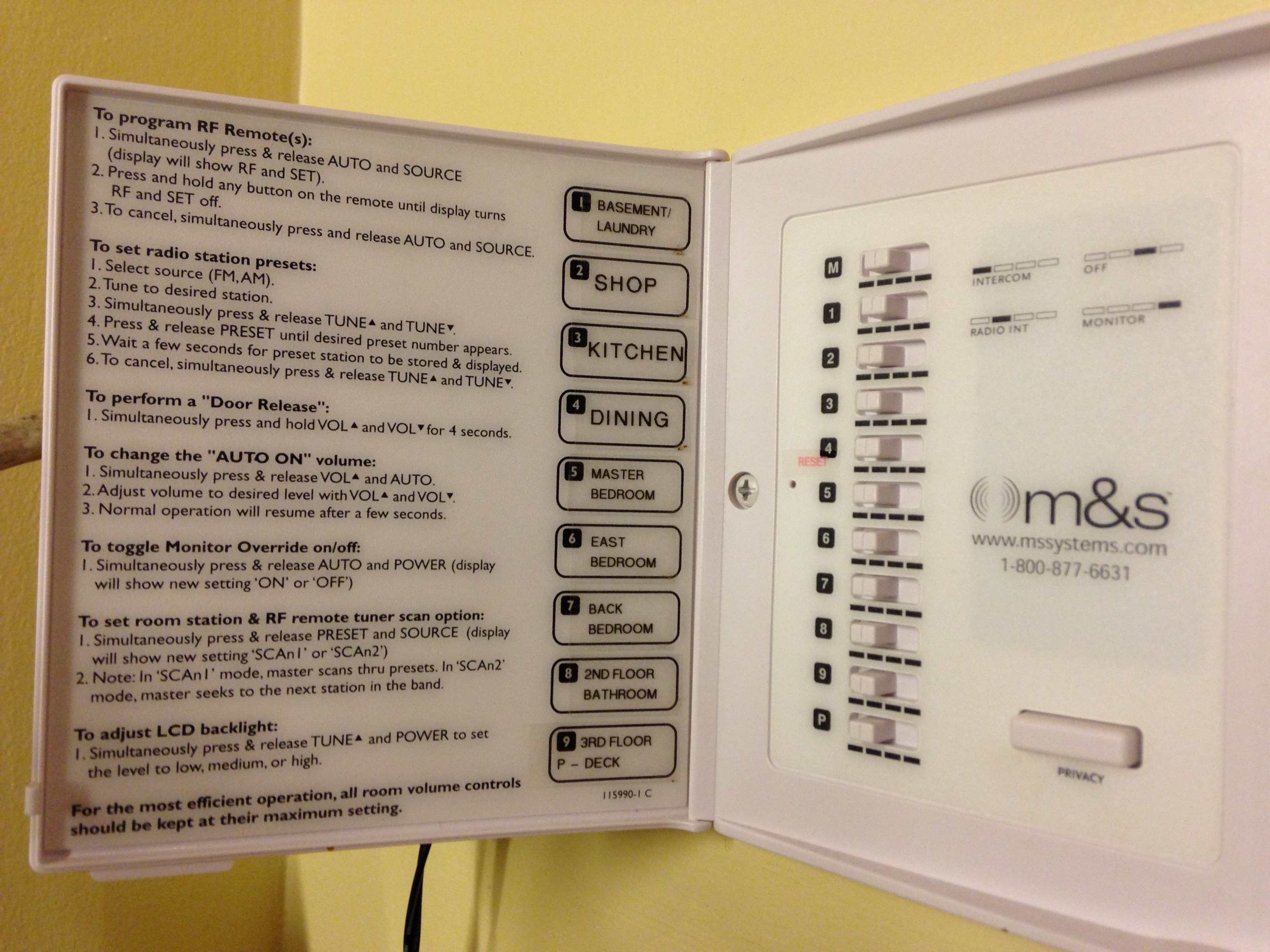

We now have stations in every occupied room of the house!
